Why Does a 12-Lead ECG Only Use 10 Electrodes?
A 12-lead ECG may sound like it requires 12 electrodes, but in reality, only 10 electrodes are placed on the body. These 10 electrodes generate 12 unique leads (or “views”) of the heart’s electrical activity, giving doctors a complete picture of cardiac function.
How It Works

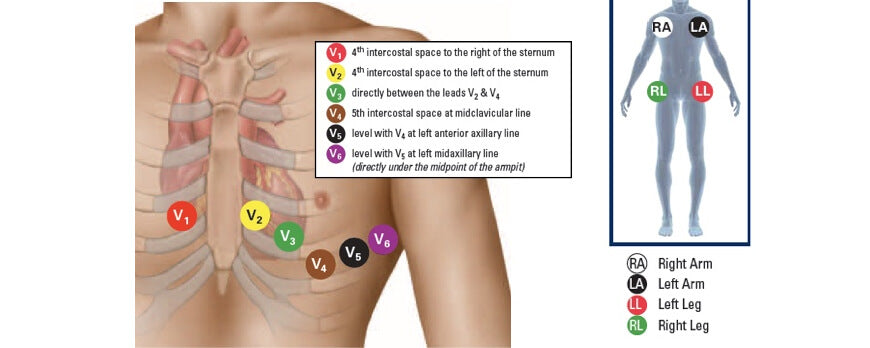

Electrodes (the sensors):
-
6 chest (precordial) electrodes – placed across the chest (V1–V6).
-
4 limb electrodes – one on each arm and leg (RA, LA, RL, LL).
Leads (the views):
-
A lead is not a physical wire, but rather a “perspective” of the heart’s electrical signals.
-
The ECG machine uses the 10 electrodes to calculate 12 distinct leads, offering multiple angles of heart activity.
The 12 Leads Explained
1. Bipolar Limb Leads (3 leads):
-
Lead I: Right arm (RA) → Left arm (LA)
-
Lead II: RA → Left leg (LL)
-
Lead III: LA → LL
2. Augmented Limb Leads (3 leads):
-
aVR: View from the right shoulder
-
aVL: View from the left arm
-
aVF: View from the feet (inferior perspective)
3. Precordial (Chest) Leads (6 leads):
-
V1–V6: Positioned across the chest, capturing a horizontal cross-section of the heart.
The Big Picture
In simple terms, the 10 electrodes act like “cameras” placed around the body. The ECG machine then processes these signals to create 12 different angles, helping healthcare professionals detect abnormalities such as arrhythmias, ischemia, or heart attacks.
This smart design explains why a 12-lead ECG needs only 10 electrodes but provides 12 critical insights into heart health.
