How is SpO2 Measured?
How SpO2 Measurement Works: The Science of Light
SpO2 (peripheral capillary oxygen saturation) is measured through a remarkable non-invasive technology called pulse oximetry. This process uses light to estimate the percentage of hemoglobin molecules in your blood that are saturated with oxygen.
The standard device used is a pulse oximeter, which painlessly clips onto a fingertip, toe, or earlobe. Here's how this technology transforms light into a vital health reading.
The Step-by-Step Measurement Process
-

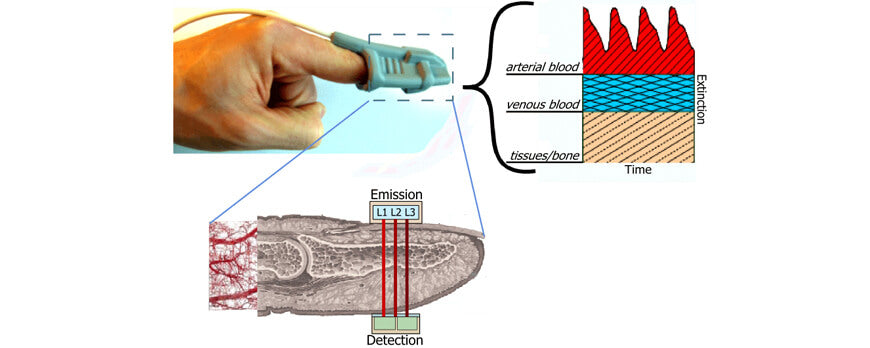

Light Emission:
The device contains two Light-Emitting Diodes (LEDs) that shine two specific wavelengths of light—one red and one infrared—through the skin and blood vessels. -
Differential Absorption:
Oxygenated hemoglobin (HbO₂) and deoxygenated hemoglobin (Hb) absorb these light wavelengths differently.-
Oxygen-rich blood absorbs more infrared light and allows more red light to pass through.
-
Oxygen-poor blood absorbs more red light and allows more infrared light to pass through.
-
-
Light Detection:
A photodetector sensor on the opposite side of the clip measures the amount of each wavelength of light that passes through the tissue. -
Algorithmic Calculation:
A microprocessor analyzes the ratio of absorbed red and infrared light. It specifically isolates the pulsating arterial blood flow (ignoring venous blood and other tissues) to calculate the precise proportion of oxygenated hemoglobin. -
Display:
The final calculation is displayed as the SpO2 percentage (e.g., 98%), alongside your pulse rate.
This entire process happens in seconds and provides continuous, real-time monitoring.
Pulse Oximetry vs. Arterial Blood Gas (ABG) Analysis
While pulse oximetry is the standard for non-invasive monitoring, it's not the only way to measure oxygen.
| Feature | Pulse Oximetry (SpO2) | Arterial Blood Gas (SaO2) |
|---|---|---|
| Method | Non-invasive, uses light | Invasive, requires blood draw from an artery |
| Measurement | Estimates oxygen saturation | Directly measures oxygen saturation |
| Information | Provides SpO2 and pulse rate only | Provides comprehensive data: SaO2, pH, CO₂, O₂ pressure |
| Use Case | Continuous monitoring, screening | Definitive diagnostic snapshot |
| Accuracy | ±2-4% margin of error | Highly accurate, gold standard |
💡 Pro Tip: The "pulse" in pulse oximetry is crucial. The device is smart enough to distinguish the rhythmic flow of arterial blood from static tissue and venous blood, which is why it must be placed on a pulsating area and why movement can disrupt the signal.
Factors That Can Affect Measurement Accuracy
For the most reliable SpO2 reading, be aware of these common interferents:
-
Nail Polish: Especially dark colors (black, blue, green) can block light and artificially lower readings.
-
Poor Peripheral Perfusion: Cold hands, low blood pressure, or heart failure can weaken the pulse signal, making measurement difficult.
-
Motion Artifact: Shaking or shivering can cause inaccurate readings as the device mistakes movement for blood flow.
-
Skin Pigmentation: Recent studies show that darker skin pigmentation can sometimes lead to inaccurate (over-estimated) readings.
-
Ambient Light: Strong external light sources (e.g., surgical lights) can interfere with the sensor's photodetector.
Best Practices for Accurate Measurement
-
Use a warm, clean finger with no nail polish.
-
Rest your hand comfortably at heart level.
-
Sit still and breathe normally during the reading.
-
Wait for the numbers to stabilize on the display (usually 10-30 seconds).
Frequently Asked Questions (FAQ)
Q: What is a normal SpO2 reading?
A: For a healthy individual, a normal reading at sea level is 95% to 100%. Values below 90% are considered low and typically require medical attention.
Q: Why does the reading sometimes seem inaccurate or jump around?
A: This is often due to poor signal quality caused by cold fingers, movement, or poor circulation. Ensure your hand is warm and still for an accurate measurement.
Q: Can I use a smartphone app to measure SpO2?
A: While some apps claim to do this, they are not FDA-cleared and are not reliable for medical use. Always use a certified pulse oximeter device for accurate health monitoring.
Q: How often should I measure my SpO2?
A: This depends on your health status. Patients with chronic conditions like COPD may monitor multiple times daily as advised by their doctor. For general wellness, occasional checking is sufficient.
Disclaimer: This information is for educational purposes only. Pulse oximeters are screening tools with known limitations. Always consult a healthcare professional for the interpretation of your readings and for any medical concerns. Do not delay seeking emergency care based on a home device reading.
